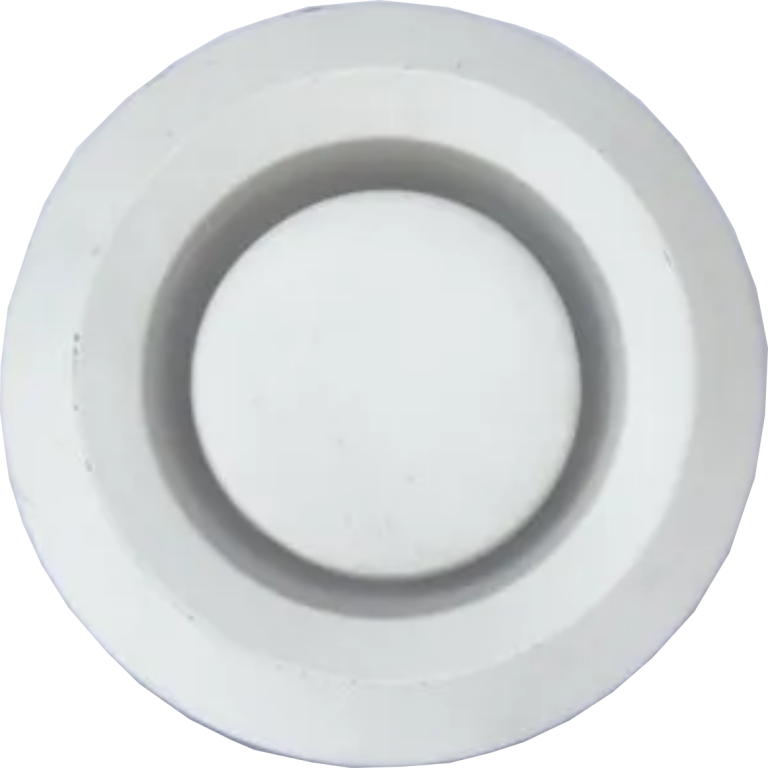

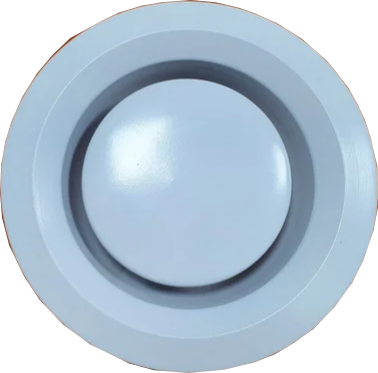

Air Disc Valve

We provide Disc Valves:

Application:

Square swirl diffuser with individually adjustable vanes to be used from 2.6 mtrs. to 4.0 mtrs. high in Air-conditioning, ventilating and heating system.

Mounting:

Overlapped in false ceiling by means of hidden fixing systems or directly replacing the false ceiling tile as well as directly in the plenum boxes.

Implementation:

High quality aluminum sheet construction slots punched in a radial layout with individually adjustable black plastic vanes on rear side. Available in standard sizes to fix with plenum boxes. Ensures a swift reduction temperature and flow velocity by means of swirling discharge and the addition of induction air, excellent performance that eliminated drafts and stratification. Rapid entrainment and intermixing capabilities.

Standard Finishes:

Available in natural aluminum, anodized or powder coated in standard RAL white colors.
